I. System functions

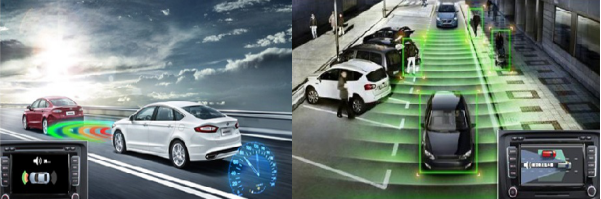

Front-end collision warning system - When following too closely, the front-end collision warning function provides the driver with precious reaction time, thereby avoiding traffic accidents.
LDW (Lane Departure Warning) - It monitors the vehicle's position within the lane through ADAS algorithms and warns the driver when the vehicle is crossing or about to cross the lane line, thereby preventing traffic accidents caused by lane departure.

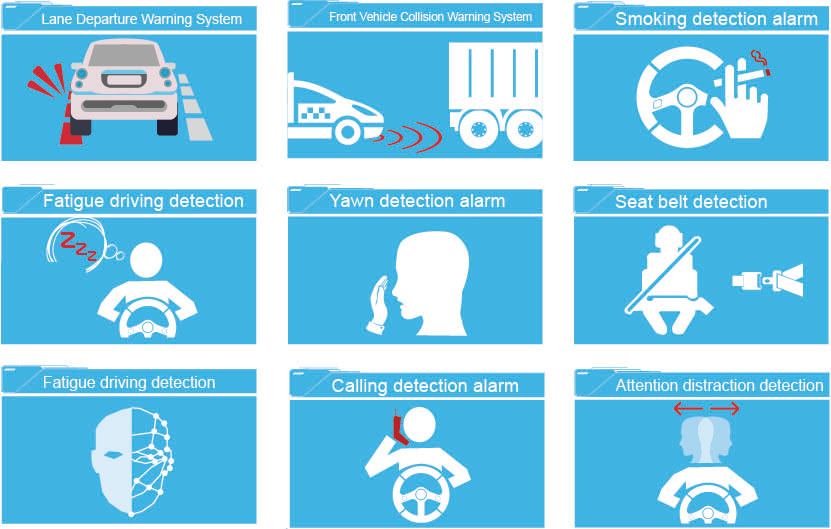

DSM Dangerous Driving Behavior Warning System - Through the integration of an independently designed conversion board and algorithm core board, it fully integrates with active safety systems. It intelligently identifies dangerous driving behaviors, automatically captures images and short videos, uploads them to the platform, and provides voice prompt warnings to the driver at the front end.
call the police
Yawning alarm
Fatigue driving alert (sleeping with eyes closed)
Distracted driving alert (looking around)
Face recognition function (to identify whether the driver is absent from duty)

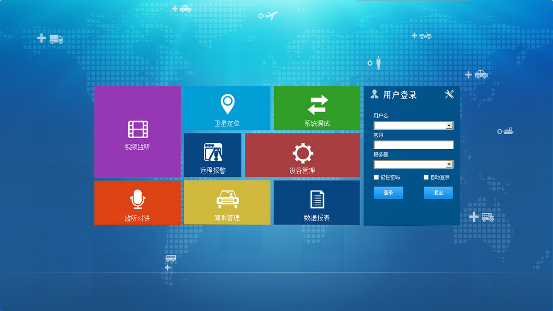

II. Client-side functions

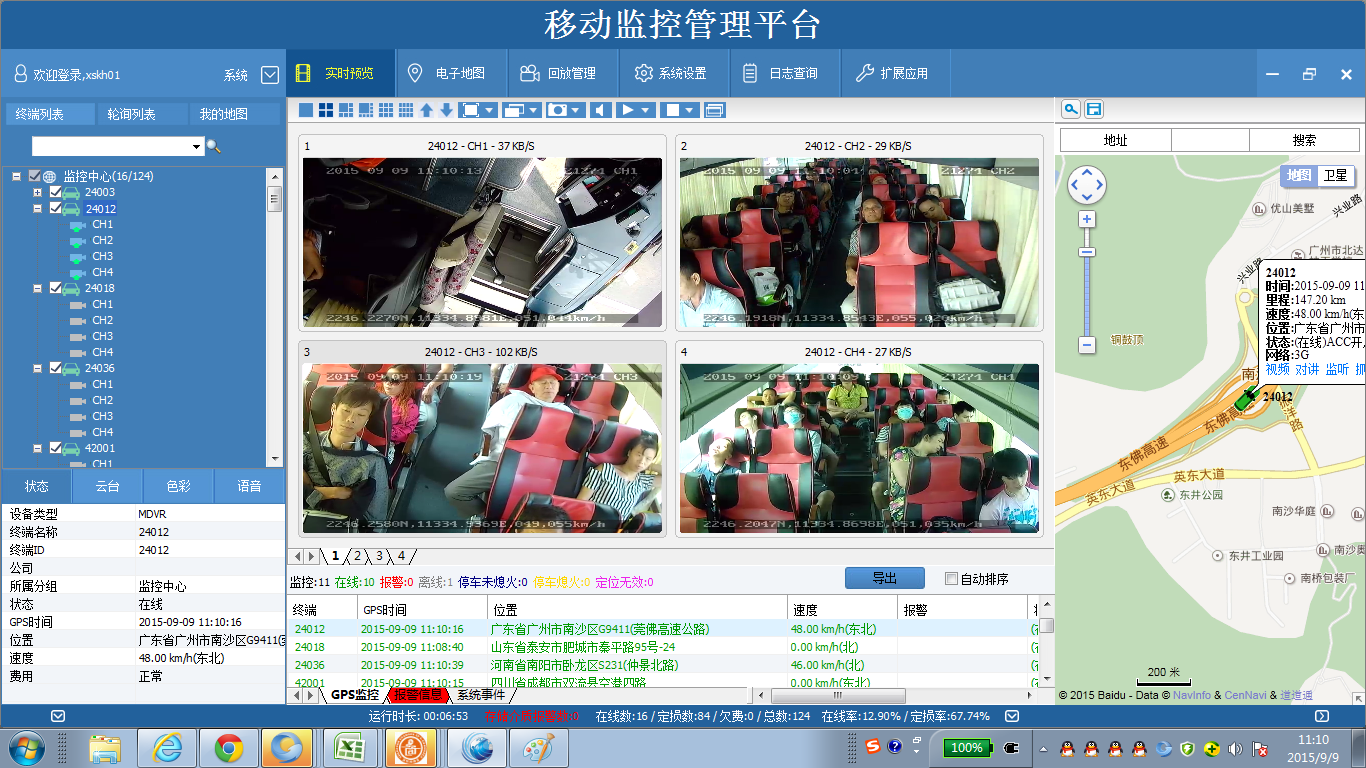

◆ Real-time video: Instant video browsing, supporting simultaneous browsing of multiple screens, displaying vehicle speed information, equipment status, GPS maps, etc
◆ GIS electronic map: Supports mainstream map displays such as Google and MapInfo, allowing for the display of multiple vehicles. Complemented by 4-screen small window monitoring videos, it enables real-time monitoring of key vehicle videos while keeping track of vehicle location information.
◆ Video recording and GPS playback: including GPS historical track download and playback, device video recording download and playback, WIFI downloaded file playback, server video recording download and playback, etc
◆ Log Management: Log query for various vehicle alarms such as device online/offline, video loss, GPS anomalies; query for detailed vehicle information; query for client traffic usage, etc;
◆ Active safety report: Intuitively display the changing trends and proportions of dangerous driving behaviors. Rank the fleets with more dangerous driving behaviors. All dangerous driving behaviors can be reported, with screenshots and short videos attached
